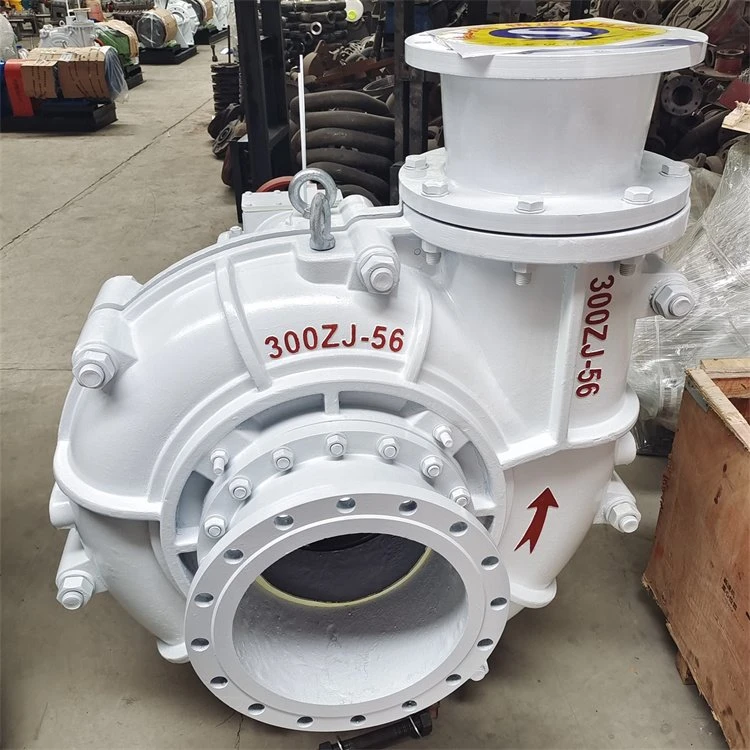

This ash slurry pump adopts heavy-duty horizontal cantilever centrifugal structure. Wetted components such as impeller, pump volute and liner are made of high-chromium alloy to resist continuous abrasion from fly ash and bottom-ash particles. Multiple shaft seal types are optional: expeller seal, packing seal and mechanical seal to adapt different on-site water supply conditions.We provide professional model-selection calculation, factory performance test report, installation-operation manual and full set of export-oriented technical documents. OEM service and complete interchangeable wear spare-parts are available for power-plant project demands.
Product Parameters
|
Parameter |
Value |
|
Flow range |
10–2300 m³/h |
|
Head range |
6–95 m |
|
Allowable solid weight concentration |
Up to 65% |
|
Maximum passing particle size |
90 mm |
|
Series connection |
Multiple pumps can be connected in series to realize long-distance ash-slurry pipeline delivery |
Product Advantages
Excellent Anti-abrasion Performance
Key flow-pass parts adopt high-chromium alloy material, resisting high-speed scouring of hard ash particles, extending service life under continuous power-plant working condition.
Good Anti-clogging Ability
Optimized wide-flow-channel impeller design reduces blockage risk caused by mixed ash-slag particles.
Support Series Connection
Multi-pump series connection can satisfy long-distance and high-lift ash-slurry transportation for thermal power plants.
Various Shaft Seal Choices
Expeller dynamic seal, packing seal and mechanical seal optional, matching different site water resource situations.
Heavy-duty Stable Operation
Reinforced bearing assembly lowers vibration under heavy-duty slurry load, suitable for 24-hour non-stop running of power-plant ash-removal system.
Complete Spare-parts Supply
Full-range interchangeable wearing spare-parts can be supplied with short lead-time for fast on-site replacement, reducing power-plant shutdown loss.
Product Customization
Wetted-part Material: Custom high-chromium alloy, rubber or polyurethane wetted components according to ash particle hardness and abrasion level.
Performance Adjustment: Adjust impeller diameter, rotating speed and drive mode to meet target flow and head; provide multi-pump series solution design.
Shaft Seal Configuration: Select expeller seal, packing seal or mechanical seal according to actual site water-supply condition.
Outer Coating Customization: Custom anti-rust paint color and thickness for pump outer casing as per customer requirement.
OEM & Spare-part Service: Accept customer-branded OEM production; supply impeller, liner, throat bush and other replaceable wear parts according to drawings or samples.
FAQ
Q: What common failures easily occur in ash slurry transportation system of thermal power plant?
A: Main failures include severe abrasion of flow-pass components, pipeline blockage, pump cavitation and shaft-seal leakage, which require regular inspection and maintenance.
Q: What working-condition parameters should be provided for quotation of ash slurry pump?
A: Please provide required flow rate, total head, ash-slurry solid weight concentration, maximum particle size, medium abrasion property, whether series-running is needed and destination port information.
Q: Can this pump run continuously for thermal-power-plant hydraulic ash-removal system?
A: Yes, it is specially designed for power-plant ash-slag conveying. But regular inspection and timely replacement of worn-out components are still required.
