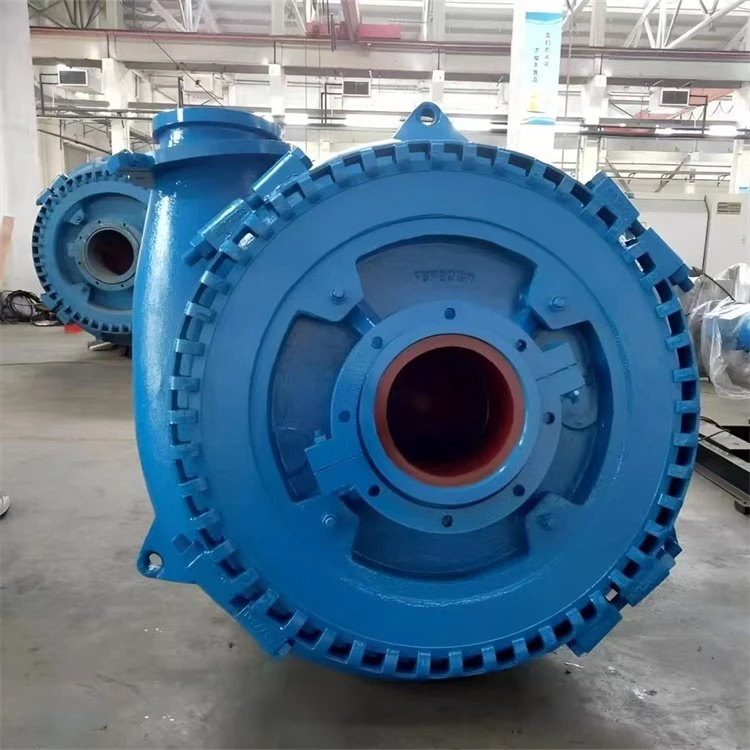

This slurry transfer pump applies horizontal single-stage single-suction cantilever double-casing structure. Wetted components such as impeller, volute liner and throat bush are optional with high-chromium alloy, rubber or polyurethane materials to adapt different abrasive slurry medium. Discharge outlet can be adjusted at 45-degree intervals for 8 installation orientations.
Product Parameters
|
Parameter |
Value |
|
Shaft seal solutions |
Multiple options: expeller dynamic seal, packing seal and mechanical seal |
|
Flow range |
10–5200 m³/h |
|
Head range |
5–115 m |
|
Allowable solid weight concentration |
Up to 65% |
|
Maximum passing particle size |
110 mm |
|
Series connection |
Multiple units can be connected in series for long-distance slurry pipeline transportation |
|
Drive modes |
V-belt, direct coupling and gearbox drive |
Product Advantages
Strong Anti-abrasion Performance
Replaceable thickened wetted-parts made of high-chromium alloy resist continuous particle scouring, extend service-life under long-time slurry transfer working-condition.
Good Large-solid-particle Passing Capacity
Wide-flow-channel impeller design effectively reduces blockage risk for mixed coarse-particle slurry medium.
Support Multi-pump Series Operation
Several pumps can be connected in series to satisfy long-distance high-lift slurry pipeline transportation demands.
Flexible Installation Adaptability
Pump outlet can be rotated to 8 different angles at 45° intervals, convenient for various site pipeline layout.
Diversified Shaft-seal Options
Expeller seal, packing seal and mechanical seal optional, matching different on-site flushing-water supply situations.
Easy Maintenance & Complete Spare-parts Supply
Modular bearing assembly for convenient disassembly and gap adjustment; full-range interchangeable wearing spare-parts can be delivered with short lead-time to cut production downtime loss.
Product Customization
Wetted-part Material: Custom high-chromium alloy, rubber or polyurethane wetted components according to particle hardness and slurry abrasion level.
Performance Parameter Adjustment: Adjust impeller dimension, rotating speed and drive mode to match target flow and head; provide multi-pump series scheme design.
Shaft Seal Configuration: Configure expeller seal, packing seal or mechanical seal based on actual site flushing-water supply condition.
Outlet & Base Customization: Adjust pump outlet angle; customize base size according to customer on-site installation foundation dimension.
OEM & Spare-part Service: Accept customer-branded OEM production; supply impeller, liner, throat bush and other replaceable wear parts per drawings or samples.
FAQ
Q: What key points should be noticed for long-distance slurry pipeline transfer system?
A: Need to confirm slurry solid concentration, particle size distribution, pipeline resistance loss, and reasonably configure pump series combination, avoid pump cavitation and overload operation.
Q: What working-condition information should be provided for accurate quotation of slurry transfer pump?
A: Please provide required flow rate, total head, slurry solid weight concentration, maximum particle size, medium abrasion property, whether series-running is needed and destination port information.
Q: Can this pump work continuously for filter-press feeding in mineral processing plant?
A: Yes. We can optimize impeller and wear-resistant material solution according to filter-press feeding working-condition; regular inspection and replacement of wearing-parts are still required.
