As a reliable supplier of Slurry Feed Pumps, I understand the critical importance of proper alignment between the pump and its motor. Misalignment can lead to a host of problems, including premature wear and tear, increased energy consumption, and even catastrophic failure. In this blog post, I will share some practical tips on how to check the alignment of a Slurry Feed Pump and its motor.
Understanding the Basics of Alignment
Before delving into the alignment checking process, it's essential to understand the two main types of misalignment: angular and parallel. Angular misalignment occurs when the centerlines of the pump and motor shafts are not parallel, while parallel misalignment happens when the shafts are parallel but offset from each other. Both types of misalignment can cause excessive vibration, noise, and mechanical stress on the pump and motor components.
Tools Required for Alignment Checking
To accurately check the alignment of a Slurry Feed Pump and its motor, you will need the following tools:
- Dial indicators: These are used to measure the relative position of the pump and motor shafts.
- Straightedge: A straightedge can be used to visually check for gross misalignment.
- Feeler gauges: Feeler gauges are used to measure the gap between the coupling halves.
- Laser alignment system: This is a more advanced tool that uses lasers to measure and adjust the alignment of the pump and motor shafts.
Step-by-Step Guide to Checking Alignment
Step 1: Prepare the Pump and Motor
Before starting the alignment process, make sure the pump and motor are properly installed and secured. Check that all mounting bolts are tightened to the specified torque. Also, ensure that the coupling halves are clean and free of any debris.
Step 2: Perform a Visual Inspection
Use a straightedge to visually check for gross misalignment between the pump and motor shafts. Place the straightedge across the coupling halves and look for any visible gaps or misalignment. If there is significant misalignment, you may need to make some initial adjustments before proceeding with the more precise alignment process.
Step 3: Install the Dial Indicators
Install the dial indicators on the coupling halves to measure the relative position of the pump and motor shafts. There are two types of dial indicators commonly used for alignment checking: radial and axial. Radial dial indicators measure the radial displacement of the shafts, while axial dial indicators measure the axial displacement.
Step 4: Take Initial Readings
Once the dial indicators are installed, take initial readings to establish a baseline. Rotate the coupling through several revolutions and record the readings at each position. Make sure to note the direction of rotation and the position of the indicators.
Step 5: Analyze the Readings
Analyze the initial readings to determine the type and amount of misalignment. Compare the readings to the manufacturer's specifications or industry standards. If the readings are outside the acceptable range, you will need to make adjustments to correct the misalignment.
Step 6: Make Adjustments
To correct the misalignment, you can use shims or adjustable mounts to move the pump or motor into the correct position. Make small adjustments and recheck the alignment after each adjustment. Continue making adjustments until the readings are within the acceptable range.
Step 7: Final Check
Once you have made the necessary adjustments, perform a final check to ensure that the alignment is correct. Rotate the coupling through several revolutions and take final readings. Compare the final readings to the initial readings and the manufacturer's specifications. If the alignment is still not within the acceptable range, you may need to repeat the adjustment process.
Using a Laser Alignment System
While the traditional method of using dial indicators is effective, a laser alignment system can provide more accurate and efficient results. A laser alignment system uses lasers to measure the relative position of the pump and motor shafts. The system provides real-time feedback and allows you to make adjustments quickly and easily.
To use a laser alignment system, follow these steps:
- Install the laser transmitters and receivers on the pump and motor shafts.
- Align the lasers and calibrate the system according to the manufacturer's instructions.
- Take readings and analyze the results using the system's software.
- Make adjustments based on the system's recommendations.
- Recheck the alignment to ensure that it is correct.
Importance of Regular Alignment Checks
Regular alignment checks are essential to ensure the reliable operation of your Slurry Feed Pump and its motor. Over time, factors such as vibration, thermal expansion, and wear and tear can cause the alignment to shift. By performing regular alignment checks, you can detect and correct misalignment before it causes significant damage to the pump and motor components.
In addition to preventing premature wear and tear, proper alignment can also improve the energy efficiency of your pump system. Misaligned pumps and motors can consume more energy than properly aligned ones, resulting in higher operating costs. By maintaining proper alignment, you can reduce energy consumption and save money on your utility bills.
Conclusion
Checking the alignment of a Slurry Feed Pump and its motor is a critical maintenance task that should not be overlooked. By following the steps outlined in this blog post, you can ensure that your pump system is properly aligned and operating at peak efficiency. Remember to use the right tools, take accurate readings, and make adjustments as needed. If you have any questions or need further assistance, please don't hesitate to contact us.

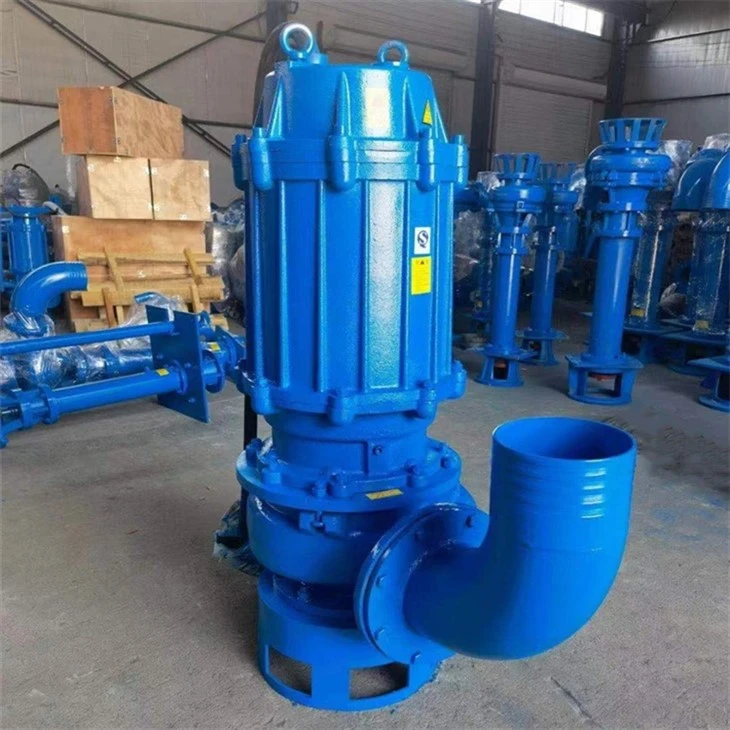

At our company, we offer a wide range of Slurry Feed Pumps, including Small Slurry Pump, Electric Submersible Slurry Pump, and Ah Slurry Pump. Our pumps are designed to meet the toughest industrial applications and are backed by our commitment to quality and customer service. If you're in the market for a new Slurry Feed Pump or need help with pump maintenance and alignment, we'd love to hear from you. Contact us today to discuss your requirements and learn more about our products and services.
References
- "Pump Installation and Alignment Guide," Hydraulic Institute
- "Mechanical Alignment Handbook," SKF
- "Alignment Best Practices," Fluke Corporation
