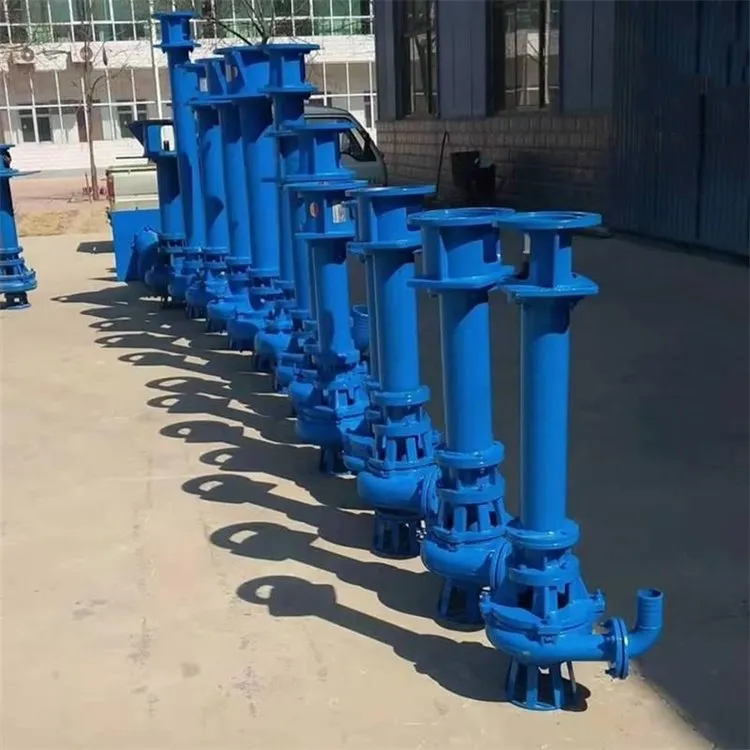

A high head sewage pump moves wastewater over a longer pipe distance or to a higher level than a normal drainage pump. It is used in raised discharge lines, deep collection pits, and sites where the outlet is far from the water source. The pump needs both pressure and enough passage size, because sewage water is not as clean as standard process water.

This product should be selected by real pipe length, elbow quantity, lift height, and expected flow. A closed or channel type impeller can help build pressure, while a wider inlet helps reduce clogging. In long pipe work, this product needs a stable motor load and correct check valve setting. When the system head is calculated clearly, this product can push wastewater to the target point without frequent stop-and-start trouble.

Product Parameters

Parameter	Value
Pump Type	High head sewage pump
Flow Range	10-250 m³/h
Head Range	30-120 m
Power	5.5-90 kW
Impeller	Channel, closed or semi-open impeller by duty
Material	Cast iron or wear resistant alloy
Discharge Size	DN50-DN200
Medium Temperature	0-40°C for common wastewater
Installation	Submersible or dry installation by model
Application	Long distance sewage lifting and high outlet drainage

Product Advantages

1. For high head sewage pump, higher head range can match raised outlet pipes.

2. Discharge size and impeller type can be selected by the wastewater condition.

3. The structure supports longer pipe work when the system head is checked first.

Our Services

Model selection can be checked by flow, head, pipe length, and liquid condition. Packing photos, nameplate details, and basic operation notes can be confirmed before shipment.
