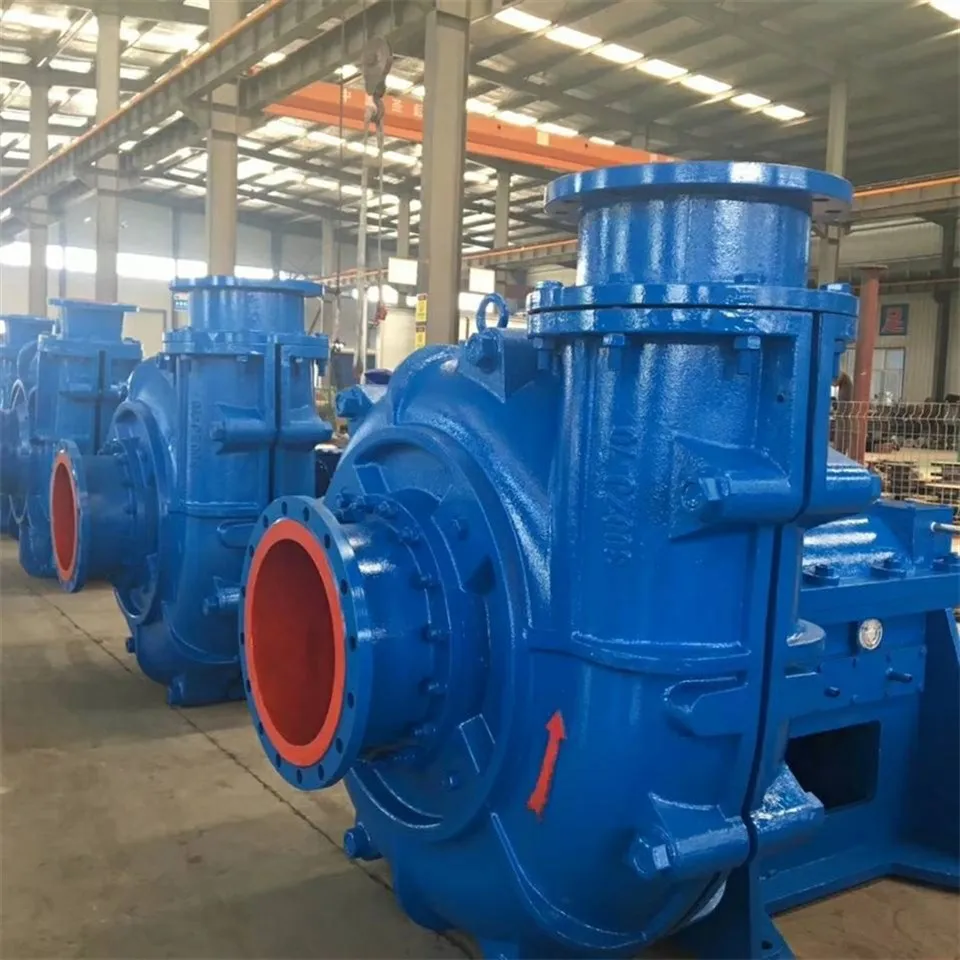

Municipal Wastewater Pumps

Municipal wastewater pumping needs steady transfer from collection wells, lift stations, and treatment plant tanks for municipal wastewater pumps.
The pump should match flow, head, solid passage, power supply, and maintenance method before use.

Send Inquiry

The municipal wastewater pumps are used for city sewage lines, residential drainage stations, and treatment plant sections. They move mixed wastewater from a low point to the next pipe or process tank. Since the liquid may include soft solids, paper, sand, and daily waste, the pump needs a clear passage and a seal system that can work under wet conditions.

In a lift station, municipal wastewater pumps often work with guide rails, level control, and check valves. This setup lets workers lift the pump out without emptying the full well. For plants with changing flow, two these products may run as duty and standby units. The model should not be selected by motor power alone. Flow curve, head loss, cable length, and solids passage all affect whether these products can run smoothly during rain, peak use, and low water periods.

Components

1. Pump body, impeller, motor, cable, seal chamber, and guide rail parts when needed.

2. Control cabinet, float switch, check valve, and coupling can be matched by project use.

Product Parameters

Parameter	Value
Pump Type	Municipal wastewater pump
Flow Range	20-800 m³/h
Head Range	8-55 m
Power	3-110 kW
Voltage	380 V / 50 Hz, other voltage by request
Installation	Guide rail wet installation or fixed base installation
Impeller	Channel or non-clog impeller
Solids Passage	30-100 mm by pump size
Control	Float switch or level control cabinet can be used
Application	Lift station, sewage plant, community drainage
