IS water pump is a common centrifugal pump, widely used in industrial, urban water supply and drainage, agricultural irrigation and drainage and other fields. Its working principle is to drive the impeller to rotate through the motor to suck in and discharge water. IS clean water pumps are mainly divided into two types: single suction port and double suction port. Single suction port pumps are suitable for small and medium-sized water supply systems, while double suction port pumps are suitable for large water supply systems because they have two suction ports and are not easy to be blocked.

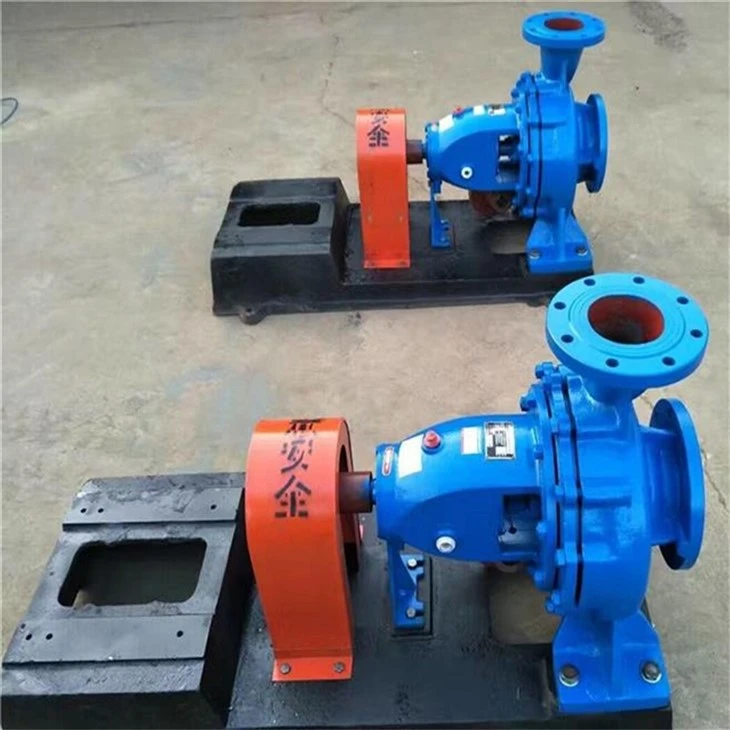

Main Image Of The Product
Partial composition
Motor: Provides power source, drives pump body and impeller to rotate by forward and reverse rotation.
Pump body: The physical part connecting motor and impeller, is the working room of pump.
Impeller: The core component, transmits the power of motor to water supply pipe.
Mechanical seal: Located at the pump shaft, plays a sealing role to prevent liquid leakage.
|
Pump Speed |
1450 and 2950rpm; |
|
Motor Voltage |
380V/415V, 3.3KV, 6KV and 10KV; |
|
Caliber |
50-400mm;(flange dimensions conform GB/T17241.6-1998) |
|
Flow range |
6-1000m3 / hr |
|
Head range |
6-130m; |
|
Temperature range |
Medium maximum temperature ≤170'C, ambient temperature ≤60'C; |
|
Maximum operating pressure (inlet pressure + pump pressure) |
1.0Mpa (G) (Hsp75m) or 1.6Mpa (G) (Hsp75m);Special configuration of up to 2.5Mpa (G); |
|
Transmission medium |
Water or other liquids physical and chemical properties similar to water; |
|
Seal plumbing parts |
No installment when inlet pressure above 0.03Mpa (G) |
|
Structural Design |
29 basic types, of which 22 pairs speed (1450rpm, 2900rpm) through A, B with two forms of the impeller diameter cutting variants, reaching 112 specifications. |
Precautions
Choose the right pump: Choose the right pump model according to your actual needs.
Installation location: Make sure the pump is placed on a stable surface and connected to the ground wire to reduce the risk of lightning strikes or electric shocks.
Regular inspection: Regularly check the electrical parts, pump body, impeller, etc. of the pump to ensure that there is no damage or leakage.
Blockage treatment: When the pump inlet is blocked, stop running immediately and remove the blockage before use.
Performance parameters
Flow rate: 6.3 to 400 cubic meters per hour (m³/h)
Lift: 5 to 125 meters (m)
Speed: 1450 revolutions per minute (rpm) or 2900 revolutions per minute (rpm)
Suction port diameter: 50 to 200 millimeters (mm)
Using temperature: ≤80℃
Voltage: 380 volts (V).
Our factory
Hebei Jutong Pump Industry (founded in 2021) has gathered a 35-year pump industry technical team and quickly established a full product chain of slurry pumps, water pumps, and mechanical seals; in 2022, it promoted production standardization and obtained ISO/CE/MA triple certification, laying the foundation for expanding the mining environmental protection market; domestic customized solutions have achieved more than 50,000 hours of equipment operation verification, with a repurchase rate of 85%; in 2024, it will enter the international market through a multilingual independent station, and its products will be used in projects such as Chilean copper mines and UAE seawater desalination; in 2025, it plans to cover 50 countries along the "Belt and Road" and sprint to the annual export target of 50 million. If necessary, please contact us and we will provide you with professional advice.
Frequently Asked Questions (FAQ)
Q1: What are your factory workshops?
A: Our factory produce includes casting, mechanical process, lathe process, heat treatment, assembly, test, etc.Warmly welcome to visit & test my factory any time.
Q2: How about your pump price?
A: We are sure our price is factory price, and insist on high quality for our long-term cooperation.
Q3: How does your factory do regarding quality control?
A: Quality is a priority. we always attach great importance to quality control from the very beginning to the very end.Our factory has 15~30 QC.
