Pipeline pump is a highly efficient and energy-saving fluid conveying equipment, which is widely used in industrial and urban water supply and drainage, high-rise building pressurized water supply, garden sprinkler irrigation, fire pressurization, HVAC refrigeration cycle, etc. Its design combines the top domestic hydraulic model and the excellent performance of IS centrifugal pump, and has the characteristics of stable operation, low noise and low failure rate.

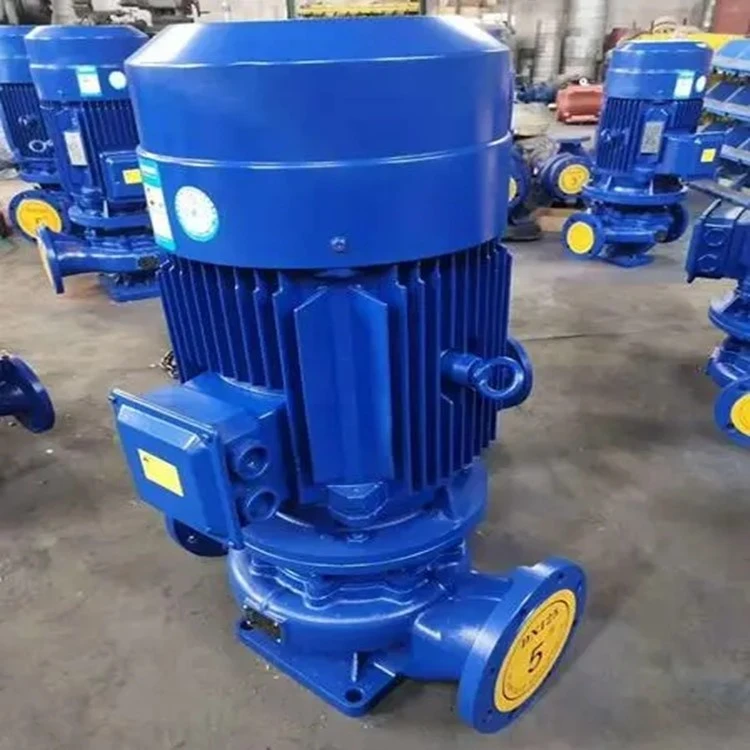

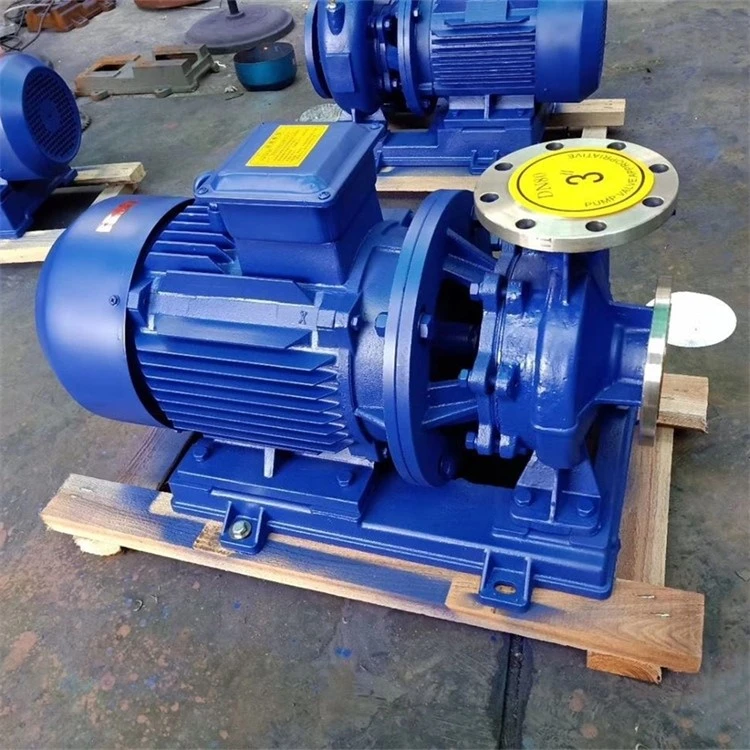

Main Image Of The Product
Working Principle
PIPELINE PUMP is mainly composed of key components such as pump body, impeller, pump shaft, bearing and sealing device. The pump body is usually made of high-strength cast iron or stainless steel. The impeller converts mechanical energy into kinetic energy and pressure energy of the fluid through high-speed rotation. The pump shaft connects the impeller and the motor, and the bearing reduces friction and improves operating efficiency. The sealing device prevents fluid leakage, and common ones are mechanical seals and packing seals.
Performance characteristics
High efficiency and energy saving: PIPELINE PUMP adopts advanced hydraulic model, with high efficiency and good performance.
Smooth operation: The absolute concentricity of the pump shaft and the excellent dynamic and static balance of the impeller ensure stable operation without vibration.
Low noise: The pump supported by two low-noise bearings runs smoothly, and there is basically no other noise except the faint sound of the motor.
Low failure rate: The structure is simple and reasonable, and the key components are equipped with international first-class quality, which improves the trouble-free working time of the whole machine.
Easy maintenance: It is simple and quick to replace seals, bearings and other components.
Save space: The outlet direction can be selected in three directions: left, right and upward, which is convenient for pipeline layout and installation and saves space.
Application areas
Industrial and urban water supply and drainage: used for urban water supply systems and industrial wastewater treatment.
High-rise building pressurized water supply: provide pressurized water supply for high-rise buildings.
Garden sprinkler irrigation: used for garden irrigation systems.
Fire boosting: provide high-pressure water flow in fire protection systems.
HVAC refrigeration cycle: circulate cooling water in HVAC systems.
Equipment matching: used for cooling and circulation systems of various equipment.
Structural composition
Pump body and pump cover: As the main pressure-bearing parts, they are usually made of cast iron or stainless steel, with a volute flow channel inside to guide the movement of the fluid.
Impeller and power transmission system: The impeller adopts a backward curved blade design to transfer kinetic energy to the fluid through centrifugal force. The impeller is directly installed on the extended shaft of the motor and adopts a direct-connected structure to reduce energy loss.
Seal and bearing device: The shaft seal mostly adopts mechanical seals or combined seals, and the bearing system balances the radial/axial loads through an optimized layout to ensure low-vibration operation.
Motor and pipeline interface: The motor is rigidly connected to the pump body through the base, with a power range of 0.37-160 kW, and the inlet and outlet pipes are coaxially designed to support horizontal or vertical installation.
Our factory
Hebei Jutong Pump Industry has integrated a team of industry experts with 35 years of experience since its operation in 2021, and has built vertical integration capabilities for fluid equipment such as slurry pumps; in 2022, it will break through market barriers with automated production line upgrades and international certification; it has served domestic mines and sewage treatment plants for more than 50,000 hours, and 85% of continuous repurchases have confirmed the value of the solution; in 2024, its products will be launched in Chilean tailings transportation and Middle East desalination projects; in 2025, it plans to radiate to 50 countries and regions around the world, with an export volume of 50 million. If necessary, please contact us and we will provide you with professional advice.
Frequently Asked Questions (FAQ)
Q1: What are your factory workshops?
A: Our factory produce includes casting, mechanical process, lathe process, heat treatment, assembly, test, etc.Warmly welcome to visit & test my factory any time.
Q2: How about your pump price?
A: We are sure our price is factory price, and insist on high quality for our long-term cooperation.
Q3: How does your factory do regarding quality control?
A: Quality is a priority. we always attach great importance to quality control from the very beginning to the very end.Our factory has 15~30 QC.
