High pressure centrifugal water pump is a common fluid conveying equipment, which mainly relies on the centrifugal force generated by the rotation of the impeller to convey the liquid. Its working principle is as follows: the motor drives the impeller to rotate at high speed through the pump shaft, so that the liquid is thrown to the outer edge of the impeller under the action of centrifugal force, and flows into the water pressure pipeline of the water pump through the flow channel of the volute, thereby realizing the liquid conveyance.
Product Features & Applications
High-pressure centrifugal water pumps are the "blood vessel boosters" of modern industry. Through the precise centrifugal force principle and (usually) multi-stage series design, they efficiently convert mechanical energy into liquid pressure energy to meet various high-lift and high-pressure liquid transportation needs. Their design and manufacturing are complex, and they have extremely high requirements for materials, sealing, balance, and hydraulic performance. Correct selection, installation, operation and maintenance are the key to ensuring their long-term reliable, efficient and safe operation.
Working Principle
Impeller Rotation: The motor or other prime mover drives the pump shaft, driving the impeller to rotate at high speed in the pump casing.
Generate Centrifugal Force: The liquid enters from the center of the impeller (inlet) and is driven by the high-speed rotating impeller blades. Under the action of centrifugal force, the liquid is thrown to the outer edge of the impeller.
Increase in Kinetic Energy: During this process, the impeller transfers mechanical energy to the liquid, which significantly increases the flow rate (kinetic energy) of the liquid.
Conversion of Kinetic Energy to Pressure Energy: High-speed liquid leaves the impeller and enters the pump casing (usually a volute or guide vane structure). The flow channel of the pump casing is designed to be gradually enlarged (diffuser principle), which reduces the flow rate of the liquid. According to Bernoulli's principle, the kinetic energy of the liquid is effectively converted into pressure energy (pressure head).
High-pressure Output: Finally, the liquid is discharged from the outlet of the pump at a higher pressure and delivered to the required place.
Application scenarios
Thermal power plant/boiler system
Boiler feed water: delivering high-temperature deoxygenated water to high-pressure boilers (main equipment).
Chemical/petrochemical
Process pressurization: hydrocracking, coal liquefaction reaction feed pump (corrosion-resistant, high-pressure resistant).
High-pressure injection: catalyst, additive injection system.
Seawater desalination
Reverse osmosis (RO) system: provides 60-80 Bar high-pressure feed water for seawater desalination.
Design Features
High speed: Higher speed can generate greater centrifugal force, thus obtaining higher single-stage head (pressure). Modern high-pressure centrifugal pumps often use high-speed motors or speed increase through gearboxes.
Multistage design: This is the most common way to achieve high pressure. Multiple impellers and guide vanes (or volutes) are installed in series in the pump. The liquid passes through each stage in turn, and each stage increases a certain pressure (head), and finally obtains a high cumulative pressure at the outlet.
Number of stages: Depending on the required final pressure, the number of stages can range from a few to more than a dozen or even more.
Structure: Multistage pumps usually have a segmented (horizontal split type is less used for high pressure) structure, with impellers of each stage installed on the same shaft, and liquid is transferred and energy is converted between stages through guide vanes or reverse guide vanes.
Precision impeller and flow channel design: Efficient impeller profiles (such as backward curved blades) and precise hydraulic design (pump casing, guide vanes) can maximize energy conversion efficiency, reduce hydraulic losses, and help obtain higher pressures at a given input power.
Strong structure: The pressure-bearing parts such as the pump body, pump cover, shaft, etc. must be made of high-strength materials (such as cast steel, stainless steel, alloy steel) and carefully designed and manufactured to withstand the huge stress generated by high pressure.

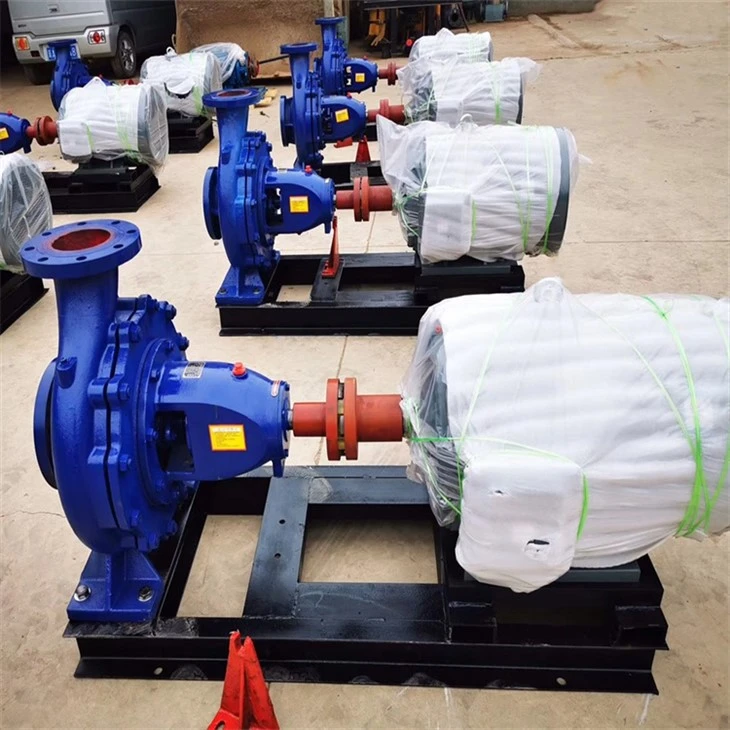

Our factory
Hebei Jutong Pump Industry, with 35 years of industry accumulation as its foundation, has created a product ecosystem of slurry pumps, valves, etc. since its establishment in 2021, and built an integrated system of production, sales and service; in 2022, it introduced automated casting equipment to improve precision, and simultaneously obtained international quality and safety certification; domestic project equipment has been running stably for more than 50,000 hours, and the 85% repurchase rate confirms its reliability; in 2024, the foreign trade team will promote product exports to Chile, Indonesia, and the UAE to participate in major projects; in 2025, it will achieve the "Belt and Road" market coverage of 50 countries and the 50 million export volume strategy. If necessary, please contact us and we will provide you with professional advice.
Frequently Asked Questions (FAQ)
Q: No water or insufficient pressure/flow after startup?
A: No pump exhaust, too high suction or inlet leakage, bottom valve/filter blocked, impeller wear/blocked, seal ring wear, cavitation, valve not open or blocked, speed too low, multi-stage pump internal leakage.
Q: What markets do your pumps export to?
A: Europe, North & South America, South-East Asia, Africa, Oceanica, Middle East countries. Our overseas agent in Italy, Russia, America and Africa are gradually improving.
Q: What information should I let you know if I want to get a quotation?
A: Please let us know the pump capacity, head, medium, operation situation, quantity, etc. As much as your provide, the precision and accurate model selection.
Q: Is it available to print our own brand on the pump?
A: Totally acceptable as international rules.
Q: How can I get the price of your pump?
A: You can connect with us through any of the following contact information. Our personalized service person will respond you within 24 hours.
