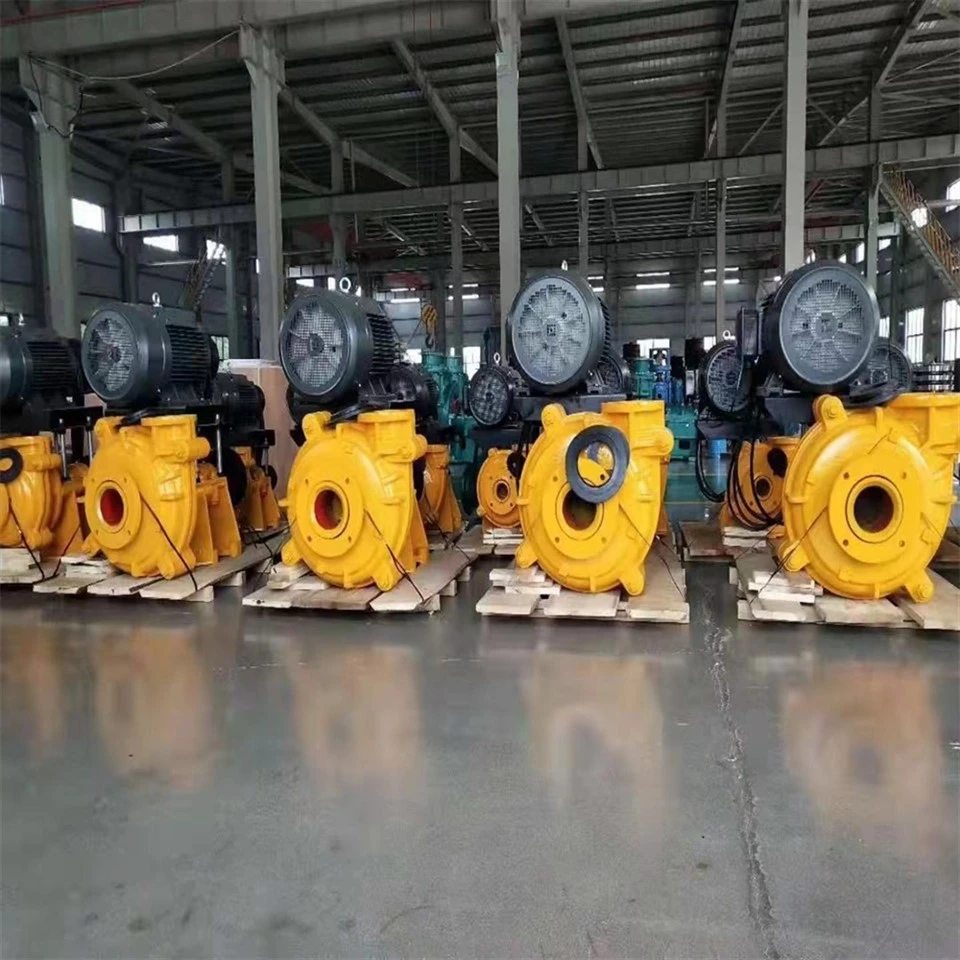

This tailings pump adopts heavy-duty cantilever horizontal centrifugal structure. Wetted parts including impeller, volute liner and throat bush are made of high-chromium wear-resistant alloy material, which can resist continuous erosion from sharp mineral particles. Multiple shaft seal options are available, including expeller seal, packing seal and mechanical seal to satisfy different site water-supply conditions.
Product Parameters
|
Parameter |
Value |
|
Flow rate |
12–2600 m³/h |
|
Head |
8–110 m |
|
Allowable solid weight concentration |
Up to 70% |
|
Maximum passing particle size |
120 mm |
|
Series operation |
Supported, for long-distance tailings pipeline transportation |
Product Advantages
Heavy-load Wear-resistant Performance
Key flow-pass components adopt high-chromium alloy material, resisting high-speed impact and abrasion of sharp tailings particles, extending service life under continuous mine operation.
Large Particle Passing Capacity
Optimized wide-flow-channel impeller structure reduces blockage risk and adapts to coarse-particle mine tailings medium.
Support Series Operation
Multiple units can be connected in series to meet long-distance and high-lift tailings pipeline transportation requirements.
Multiple Shaft Seal Solutions
Expeller dynamic seal, packing seal and mechanical seal optional, suitable for various on-site water-supply situations.
Stable Continuous Operation
Reinforced heavy-duty bearing assembly reduces vibration under heavy slurry load, suitable for 24-hour non-stop mine production.
Complete Spare-parts Supply
Full range interchangeable wear parts in stock, short delivery time for quick field replacement to lower mine downtime loss.
Product Customization
Flow-pass Component Material: Custom high-chromium alloy, rubber or polyurethane wetted parts according to tailings particle hardness and abrasion degree.
Performance Parameter Adjustment: Adjust impeller diameter, rotating speed and drive mode to match required flow and head; support multi-pump series scheme design.
Shaft Seal Configuration: Configure expeller seal, packing seal or mechanical seal based to local site water resource condition.
Surface & Coating Treatment: Custom anti-rust paint color and thickness for outer pump casing according to customer requirements.
OEM & Spare-part Service: Accept customer-branded OEM production; supply impeller, liner, throat bush and other replaceable wear parts per drawings or samples.
FAQ
Q: What points need special attention for tailings long-distance pipeline transportation?
A: Need to confirm slurry concentration, particle size distribution, pipeline resistance loss, and reasonably configure pump series combination to avoid cavitation and overload operation.
Q: What working-condition data should be offered for quotation of tailings pump?
A: Please provide required flow rate, total head, tailings solid weight concentration, maximum particle size, medium abrasion property, whether series operation is needed and destination port information.
Q: Can this pump work 24 hours continuously for mine tailings discharging?
A: Yes. The heavy-duty structure and high-chrome wear-resistant components are designed for continuous mine duty. Regular inspection and replacement of wearing parts are still required.
