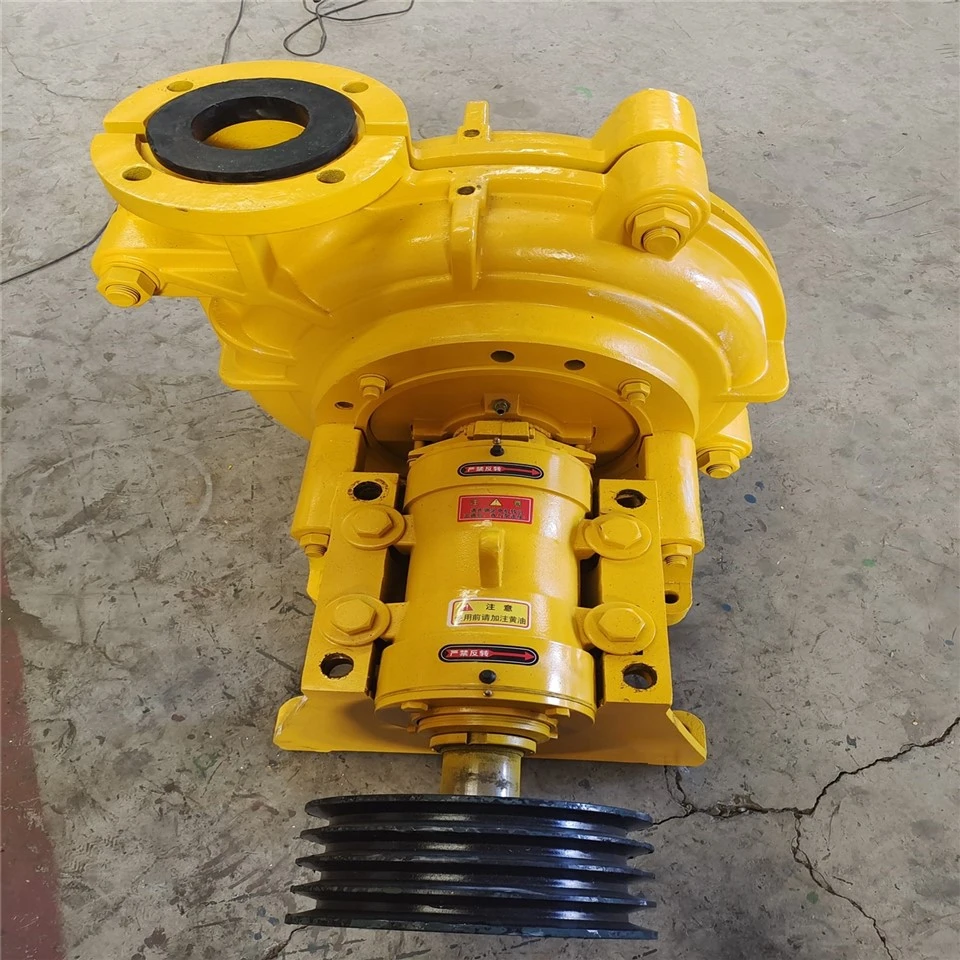

This wear resistant slurry pump adopts horizontal single-stage single-suction cantilever double-shell structure. Wetted components including impeller, volute liner and guard plate can select high-chromium alloy, rubber, polyurethane or ceramic materials according to medium characteristics. Outer pump shell serves as protective housing while inner wear-resistant liners can be individually replaced. Pump outlet can be adjusted at 45-degree intervals for 8 installation orientations.
Product Advantages
Multi-material Wear-resistance Matching
Rich optional wetted-part materials match different particle hardness and abrasion levels, realize cost-effective service-life improvement for various slurry conditions.
Double-casing Protective Structure
Outer pump shell keeps intact; only inner wearing components need replacement, greatly lower overall operation and maintenance cost.
Wide-flow-channel Hydraulic Design
Optimized impeller flow-path reduces blockage risk for coarse-particle ore, tailings and ash-slag mixed slurry.
Support Multi-pump Series Operation
Several units can be connected in series to satisfy long-distance high-lift slurry transportation for mine and industrial sites.
Product Customization
Wetted-part Material
Custom high-chromium alloy, rubber, polyurethane or ceramic wetted components based on particle hardness and slurry abrasion degree.
01
Performance Parameter Adjustment
Adjust impeller dimension, rotating speed and drive mode to match target flow and head; offer multi-pump series scheme design.
02
Shaft Seal Configuration
Configure expeller seal, packing seal or mechanical seal according to actual site flushing-water supply condition.
03
Outlet & Base Customization
Adjust pump outlet angle; customize base dimension per customer installation foundation drawing.
04
OEM & Spare-part Service
Accept customer-branded OEM production; supply impeller, liner, guard plate and other replaceable wear parts per drawings or samples.
05
FAQ
Q: How to choose proper wetted-part material for wear resistant slurry pump?
A: Hard sharp-particle slurry prefers high-chromium alloy; round smooth particles select rubber or polyurethane; ultra-heavy-abrasion working-condition can adopt ceramic wetted-parts.
Q: What working-condition data should be offered for quotation of wear resistant slurry pump?
A: Please provide required flow rate, total head, slurry solid weight concentration, maximum particle size, particle hardness, whether series-running is needed and destination port information.
Q: Is double-casing structure necessary for heavy-abrasion slurry working-condition?
A: Yes. Double-casing structure protects outer pump shell from erosion, only inner wear-resistant liners need periodic replacement, which effectively cut long-term maintenance expense.
